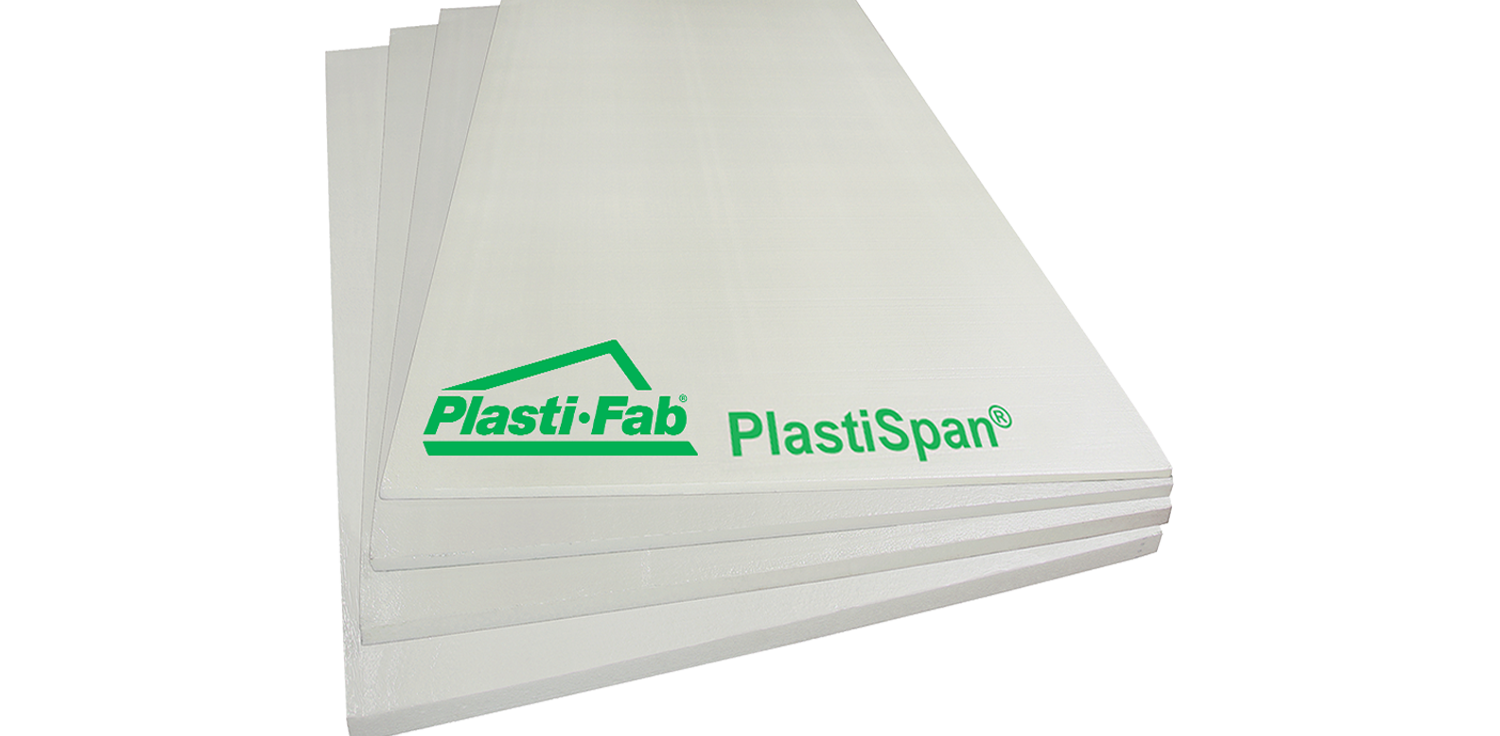

PlastiSpan®
PlastiSpan Insulation is a moulded expanded polystyrene (EPS) insulation.EPS is a closed cell, rigid foam plastic insulation.

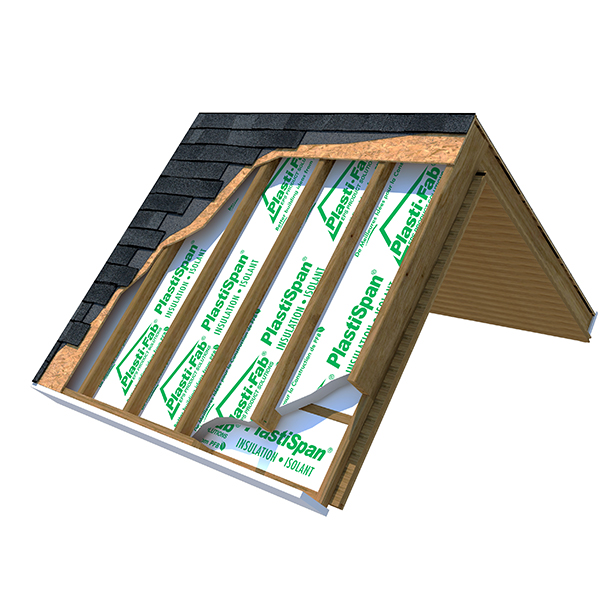

PlastiSpan insulation applied as continuous insulation over foundations, walls and roofs eliminates thermal bridging, increasing your total effective R-value. This reduces energy costs and increases your energy savings.
PlastiSpan® expanded polystyrene (EPS) insulation conforms to ASTM C578, Standard Specification for Rigid, Cellular Polystyrene Thermal Insulation, as detailed below.
PlastiSpan insulation has also been evaluated for conformance with the requirements of ICC-ES AC12, Acceptance Criteria for Foam Plastic Insulation per ICC-ES Evaluation Report ESR-1587 and Intertek Code Compliance Research Report CCRR-1072 (see Code Support section in Technical Library for additional information).
- Available in 2x8 ft, 4x8 ft; 2 ft high bundles
- 1, 1 ½, 2, 2 ½, 3 in. Thicknesses with Special order sizes available upon request
- Meets all building codes for above & below grade
- Most cost-effective insulation per R-value
- Meets ASTM C578, Type I
- Thermal resistance - R-value 3.9/inch @ 75 F, 4.2/inch @ 40 F
- Closed cell insulation resists moisture
- Compressive Resistance: 10 psi
- Easy to cut and install
- Maintains R-value
- Increases energy efficiency for reduced heating and cooling costs
- Can be used in Retrofit & new construction
Material Properties of PlastiSpan® Insulation
| Material Property | Units | Test Method | Property Values | |
|---|---|---|---|---|
| Nominal Density | pcf | ASTM C303 | 1.00 | |
|
Compressive Resistance Minimum @ 10% Deformation |
psi | ASTM D1621 | 10 | |
| R-value per inch thickness at mean temperature |
40°F | (ft2•hr•0F/Btu) | ASTM C518 | 4.2 |
| 75°F | 3.9 | |||
| Water Vapour Permanence Maximum |
Perm | ASTM E96 | 5.0 |
|
|
Flexural Strength Minimum |
psi | ASTM C203 | 25 | |
|
Dimensional Stability Maximum |
% linear change | ASTM D2126 | 2.0 | |
|
Water Absorption Maximum |
% by volume | ASTM C272 | 4.0 | |
|
Oxygen Index Minimum |
volume % | ASTM D2863 | 24 | |
|
Density Minimum |
pcf | ASTM C303 | 0.90 | |
|
Flame Spread Index Maximum |
ASTM E84 | <25 | ||
|
Smoke-Developed Index Maximum |
<450 | |||
| Thermal Resistance for Some Common Thicknesses | |||
|---|---|---|---|
| Millimeters | RSI | Inches | R-Value |
| 19 | 0.49 | 3/4" | 2.81 |
| 25 | 0.65 | 1" | 3.75 |
| 38 | 0.98 | 1 1/2" | 5.63 |
| 50 | 1.30 | 2" | 7.50 |
| 75 | 1.95 | 3" | 11.25 |
|
Other Standard & Custom thicknesses available upon request. Standard sizes range from; 2x4,2x8,4x4,4x8. |
|||
