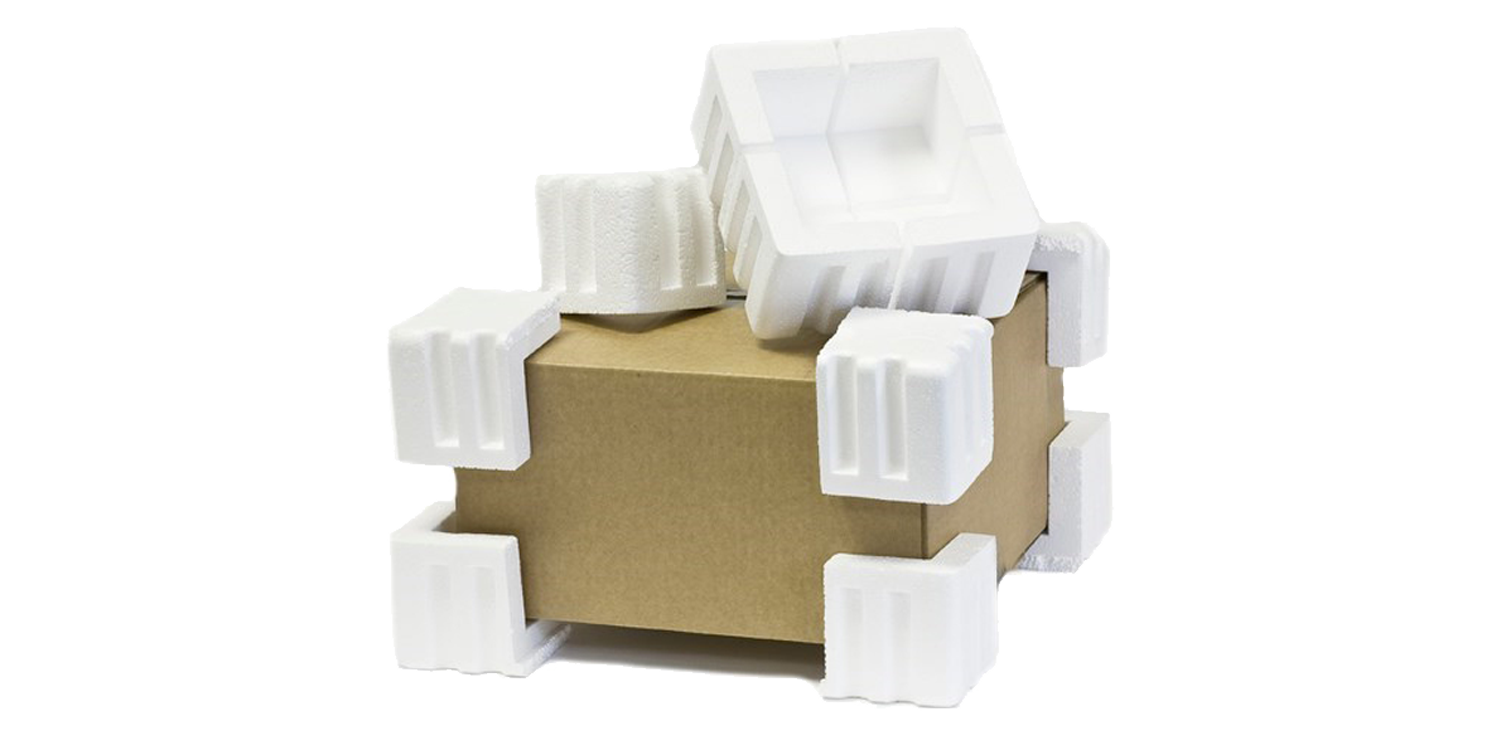

Protective Corners Product Packaging
Plasti-Fab has several stock corners to choose from. Our corners offer a lightweight package protection solution for cushioned corner protection. These foam corners are lightweight, so as not to add to the overall weight of the package and are easy to use. If you are in need of a non-stock size, we can handle that easily with a short lead time. With an in-house packaging designer, we can design and meet your corner packaging needs.
EPS Corners are strong and versatile while providing cushioning, protection and remaining environmentally safe.
- Short lead time
- Specific to your goods
- Available in a wide range of types and densities
- Excellent protection and cushioning
- EPS contains NO CFC's, HFC's or HCFC's
- Lightweight-reducing shipping costs
- EPS is not weakened by water
- Recyclable
Material Properties of Protective Corners Product Packaging Insulation
| Material Property | Test Method | Units | Property Values |
|---|---|---|---|
|
Thermal Resistance Minimum RSI per 25mm (R per inch) |
ASTM C518 |
m2 • 0C/W (ft2•h•0F/BTU) |
0.65 (3.75) |
|
Compressive Resistance Minimum @ 10% Deformation |
ASTM D1621 |
kPa (psi) |
70 (10) |
|
Flexural Strength Minimum |
ASTM C203 |
kPa (psi) |
170 (25) |
|
Water Vapour Permeance Maximum |
ASTM E96 |
ng/(Pa.s.m2) (Perms) |
300 (5.0) |
|
Water Absorption Maximum |
ASTM D2842 |
% By Volume | 6.0 |
|
Oxygen Index Minimum |
D2863 | volume % | 24 |
|
Density Minimum |
C303 | pcf | 0.90 |
| Thermal Resistance for Some Common Thicknesses | |||
|---|---|---|---|
| Millimeters | RSI | Inches | R-Value |
| 19 | 0.49 | 3/4" | 2.81 |
| 25 | 0.65 | 1" | 3.75 |
| 38 | 0.98 | 1 1/2" | 5.63 |
| 50 | 1.30 | 2" | 7.50 |
| 75 | 1.95 | 3" | 11.25 |
|
Other Standard & Custom thicknesses available upon request. Standard sizes range from; 2x4,2x8,4x4,4x8. Customer sizes upon request. |
|||
