PlastiSpan Insulation is a Type 1, moulded expanded polystyrene (EPS) insulation with an R-value of 3.75 per inch and compressive resistance of 10 psi. PlastiSpan is a versatile insulation product that can be used in a wide range of applications.

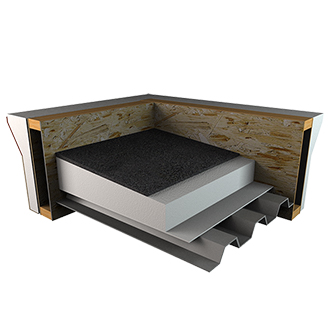

PlastiSpan EPS is a closed cell, rigid foam plastic insulation that maintains its R-value for the life of the product. When applied as continuous insulation over foundations, walls and roofs, PlastiSpan insulation is a cost-effective solution that eliminates thermal bridging, increasing your total R-value. By increasing your energy efficiency with PlastiSpan insulation, you will effectively reduce your heating and cooling costs.

PlastiSpan Insulation is code listed with CCMC 12424-L and meets the requirements of CAN ULC S701.1, Type 1.

  • Available in 2x8 ft, 4x8 ft; 2 ft high bundles
  • 1, 1 ½, 2, 2 ½, 3 in. Thicknesses with Special order sizes available upon request
  • Meets all building codes for above & below grade
  • Most cost-effective insulation per R-value
  • Thermal resistance - RSI 0.65/25 mm (R-value 3.75/inch)
  • Closed cell insulation resists moisture
  • Compressive Resistance: 10 psi
  • Easy to cut and install
  • Maintains R-value
  • Increases energy efficiency for reduced heating and cooling costs
  • Can be used in Retrofit & new construction

Material Properties of PlastiSpan® Insulation

Material Property Test Method Units Property Values
Thermal Resistance
Minimum RSI per 25mm (R per inch)
ASTM
C518
m20C/W
(ft2•h•0F/BTU)
0.65
(3.75)
Compressive Resistance
Minimum @ 10% Deformation
ASTM
D1621
kPa
(psi)
70
(10)
Flexural Strength
Minimum
ASTM
C203
kPa
(psi)
170
(25)
Water Vapour Permeance
Maximum
ASTM
E96
ng/(Pa.s.m2)
(Perms)
300
(5.0)
Water Absorption
Maximum
ASTM
D2842
% By Volume 6.0
Oxygen Index
Minimum
D2863 volume % 24
Density
Minimum
C303 pcf 0.90
Thermal Resistance for Some Common Thicknesses
Millimeters RSI Inches R-Value
19 0.49 3/4" 2.81
25 0.65 1" 3.75
38 0.98 1 1/2" 5.63
50 1.30 2" 7.50
75 1.95 3" 11.25
Other Standard & Custom thicknesses available upon request.
Standard sizes range from; 2x4,2x8,4x4,4x8.
